A busbar, often referred to as a power bus or busbar system, is an essential component in electrical distribution systems, playing a vital role in efficiently conducting electricity within various applications, from power plants to data centers. Its primary function is to transfer electrical current from one point to another, helping distribute power safely and reliably. In essence, busbars serve as conduits for electrical energy within systems, facilitating seamless power transmission across critical connections.
Busbars are typically constructed from conductive metals such as copper, aluminum, or steel, known for their high conductivity, durability, and efficiency in minimizing power losses. They come in various shapes, such as flat strips, hollow tubes, and bars, each tailored to meet specific application requirements in the electrical industry.

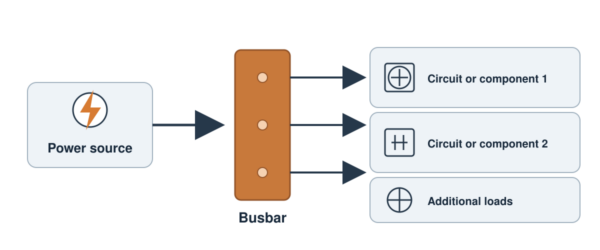

How busbars work
The working principle of a busbar revolves around its ability to handle significant amounts of electrical current, either at low or high voltage, depending on the specific need. Busbars act as connecting points for electrical circuits, merging multiple sources of power into a unified stream or distributing a single power source across multiple outputs. This ensures a consistent and efficient flow of electricity, which is crucial in large systems where power distribution reliability is paramount.
Busbars are often encased in insulating materials or placed in dedicated panels to protect against electrical faults, heat dissipation, and accidental contact. These safety features contribute to minimizing downtime and maximizing efficiency in electrical systems.
Key types of busbars
1. Single busbar system
This is the simplest form of busbar system, often used in low-power applications where reliability and safety requirements are minimal. It consists of a single conductive strip, making it cost-effective but limiting the redundancy of power supply options.
2. Double busbar system
A double busbar system provides greater flexibility and reliability by allowing two separate busbars to operate in parallel. This configuration is typically used in facilities where continuous power supply is critical, as it allows one busbar to take over in case the other fails.
3. Main and transfer busbar system
This type involves a primary (main) busbar and a secondary (transfer) busbar that can be used as a backup. It’s highly suitable for power plants and substations, where reliability is essential. Operators can transfer loads from the main busbar to the transfer busbar during maintenance without interrupting the power supply.
4. Ring busbar system
A ring busbar system is configured in a loop, offering a high degree of redundancy and reliability. It’s often employed in high-voltage applications, like transmission substations, where any fault on a section of the busbar can be isolated without affecting the entire circuit.
5. Sectionalized busbar system
In this configuration, the busbar is divided into segments or sections, enabling maintenance on specific parts of the system without requiring a complete shutdown. This is widely used in distribution systems where selective power isolation is necessary.
Advantages of busbars
1. Enhanced efficiency
Due to their low resistance, busbars allow for efficient current flow, reducing energy losses and heat generation compared to conventional wiring.
2. Space-saving design
Busbars are compact and require less space than traditional cabling systems. This is especially valuable in densely packed installations like data centers or manufacturing facilities.
3. Improved safety
Busbars, often enclosed in insulated panels, reduce the risk of electrical shock and short circuits. This protective enclosure also helps to manage and dissipate heat, enhancing overall system safety.
4. Scalability and flexibility
Busbars can be easily expanded or reconfigured to accommodate growing electrical demands. This flexibility makes them ideal for applications where the load requirements may vary over time.
5. Cost-effectiveness
Busbars offer long-term cost savings due to their durability and reduced maintenance requirements, despite potentially higher initial installation costs.
Applications of busbars
1. Power generation and transmission
Busbars are integral to power plants and substations, where they handle high voltage levels, distributing power across transmission lines and feeding local grids.
2. Data centers
In data centers, where power distribution reliability is crucial, busbars help manage power flows efficiently, minimizing the risk of downtime and ensuring consistent performance.
3. Industrial and manufacturing facilities
Many manufacturing facilities rely on busbars to distribute power to heavy machinery, ensuring seamless operation with minimal power losses.
4. Commercial buildings
Commercial complexes often use busbar systems in place of traditional cabling due to their scalability, safety features, and space-saving benefits.
5. Electric vehicles and renewable energy
Busbars are also becoming increasingly popular in electric vehicles and renewable energy systems, such as solar and wind farms, where they offer efficient power distribution.

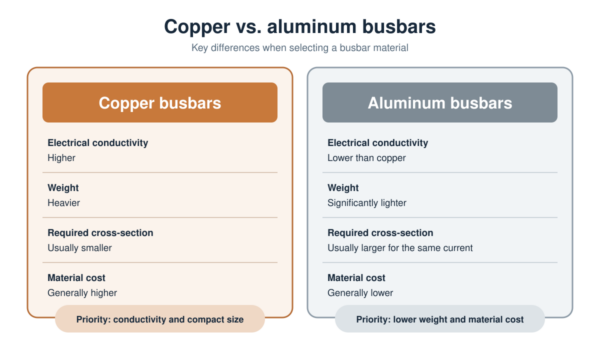

Busbar materials: Copper vs. aluminum
Choosing the right material is crucial for busbar performance, longevity, and cost-effectiveness. Here is a comparison between copper and aluminum, the two most commonly used materials for busbars:
Copper busbars
- Conductivity: Copper is known for its superior conductivity, making it ideal for applications requiring minimal power loss.
- Durability: Copper is highly resistant to corrosion and wear, leading to longer-lasting busbars, especially in demanding environments.
- Heat tolerance: Copper has excellent heat tolerance, which means it can handle high-current loads without excessive temperature rises.
- Cost: Copper is typically more expensive than aluminum, but the higher cost can be offset by its efficiency and longevity.
- Applications: Due to its high performance, copper is preferred in high-demand sectors like power generation, substations, and industrial facilities.
Aluminum busbars
- Conductivity: Aluminum has good conductivity, though slightly lower than copper. It is effective in applications where reduced weight and cost are priorities.
- Weight: Aluminum is much lighter than copper, making it easier to handle and install, which is advantageous in applications requiring a lighter system.
- Cost: Aluminum is generally less expensive than copper, making it a cost-effective choice for many applications, especially where budget constraints are a factor.
- Corrosion resistance: While aluminum has natural corrosion resistance, it may require coating or treatment to prevent oxidation in certain environments.
- Applications: Aluminum is often used in automotive, aerospace, and residential sectors, where its lightweight nature and cost-effectiveness are essential.
For more details on the differences between copper and aluminum busbars, you can visit the copper vs. aluminum busbar page for further reading.
